Titanium Ring-Titanium Ring-Baoji Yumingda Metal Materials Co.,LTD.

Product Description

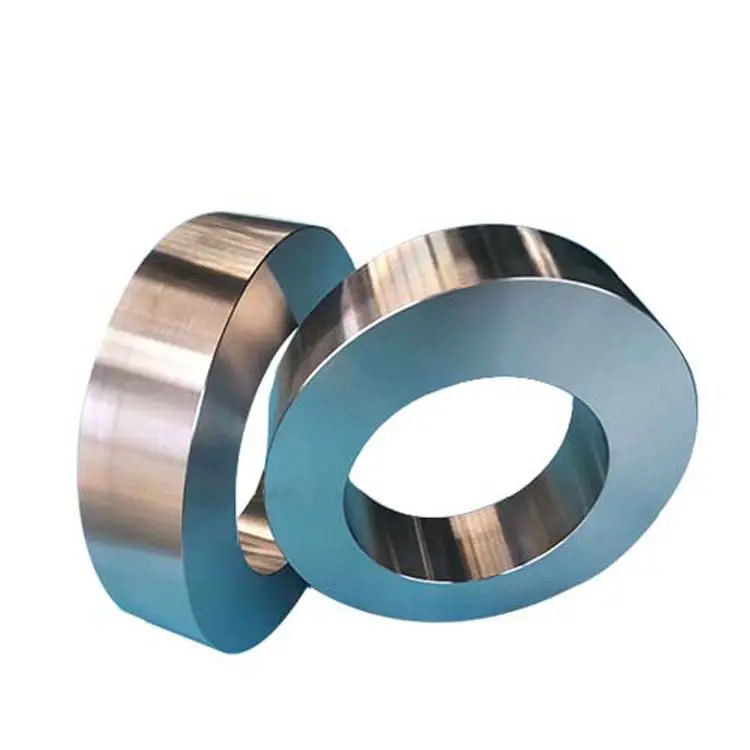

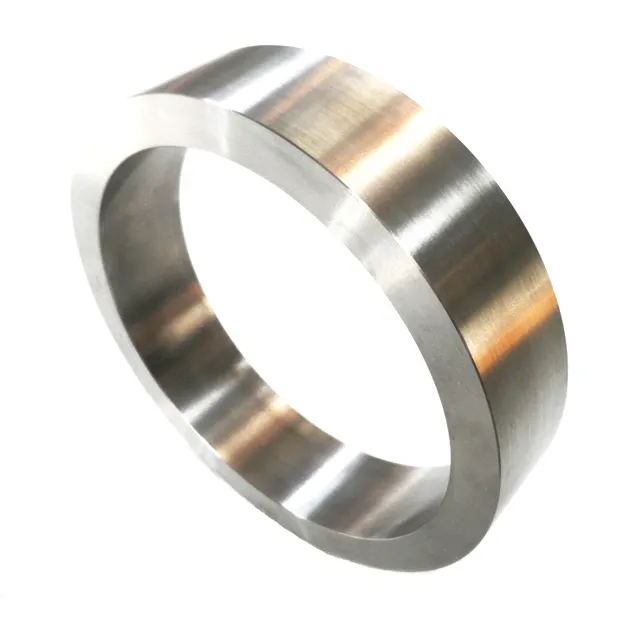

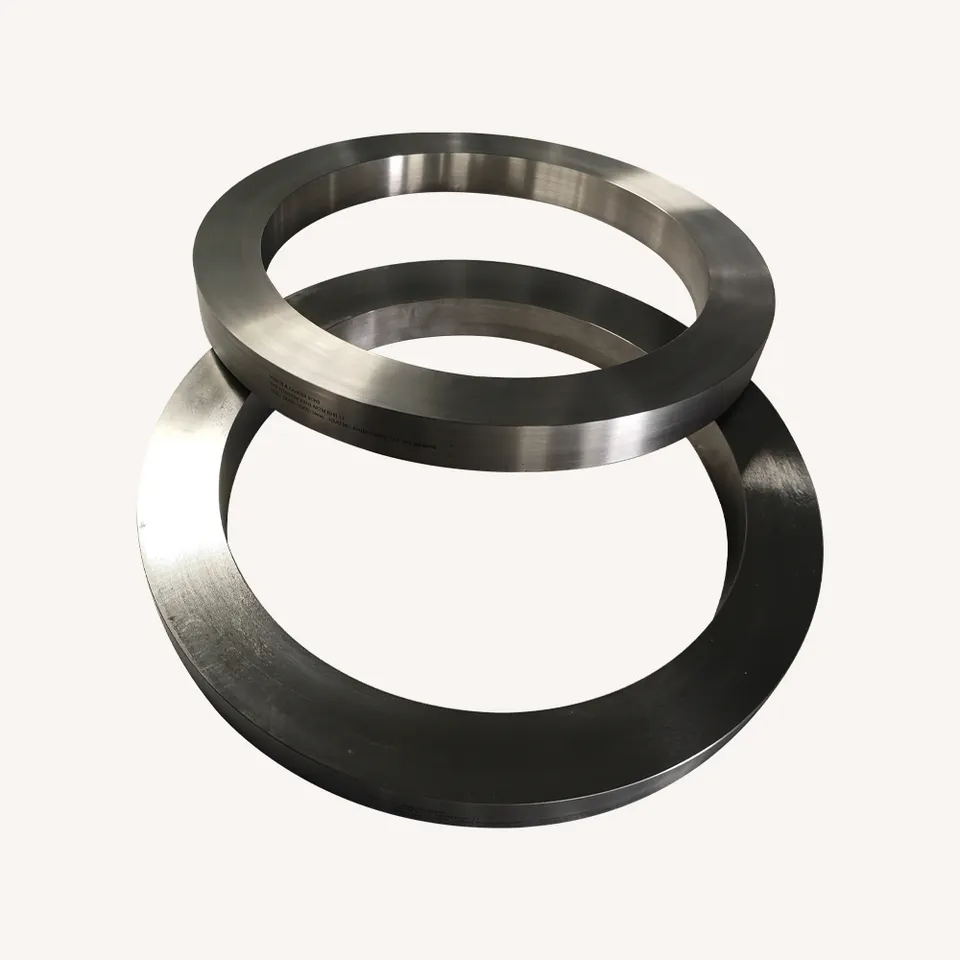

Product Name	Titanium Forging Ring
Material Grade	Gr1,Gr2,Gr3,Gr4,Gr5 ,GR7,Gr11,Gr12,Gr16,Gr17,Gr23,Ti-6Al-1.5Cr-2.5Mo-0.5Fe-0.3Si(TC6),Ti-6.5Al-3.5Mo-2.5Sn-0.3Si(TC9), Ti-6.5Al-3.5Mo-1.5Zr-0.3Si(TC11)
Size	OD : Φ200-400mm,ID:Φ100-300mm, Thickness:20-120mm;OD : Φ400-700mm,ID:Φ150-500mm, Thickness:35-600mm; OD : Φ700-1100mm,ID:Φ300-900mm, Thickness:45-600mm;
Standards	ASTM B348, ASTM B381, AMS4928 ,MIL-9047G,AMS4930
State	Annealed
Testing	UT ,PT,Chemical Composition,Mechanical Properties,Hardness,Metallographic analysis
Surface	Machined
Application	Chemical /Petrochemical /Aerospace/ Medical /Military /Textile,Ling Industry ,etc.

● From OD 200 to 1100mm,ID 100~900mm,and thickness 20~600mm are available, or as per customized size.

● Titanium forging rings are available in CPTi and alloy grades as per ASTM B348/ ASTM B381/ AMS4928;

● We supply titanium ring at very competitive prices with good quality .

● Keep many ingots and billets in stock. We supply titanium ring with the short lead time

● 100% Ultrasonic testing to every product as per AMS2631,making sure there are no defects inside.

● Visual inspection to check surface quality,ensuring without flaw,black dot and any other defects

● We provide the physical and chemical test reports from BaoTi Test Center or Xi’an Hantang Analysis&Test Co.,Ltd ,or make the testing items as per the customer’s requirements.
