Product Description

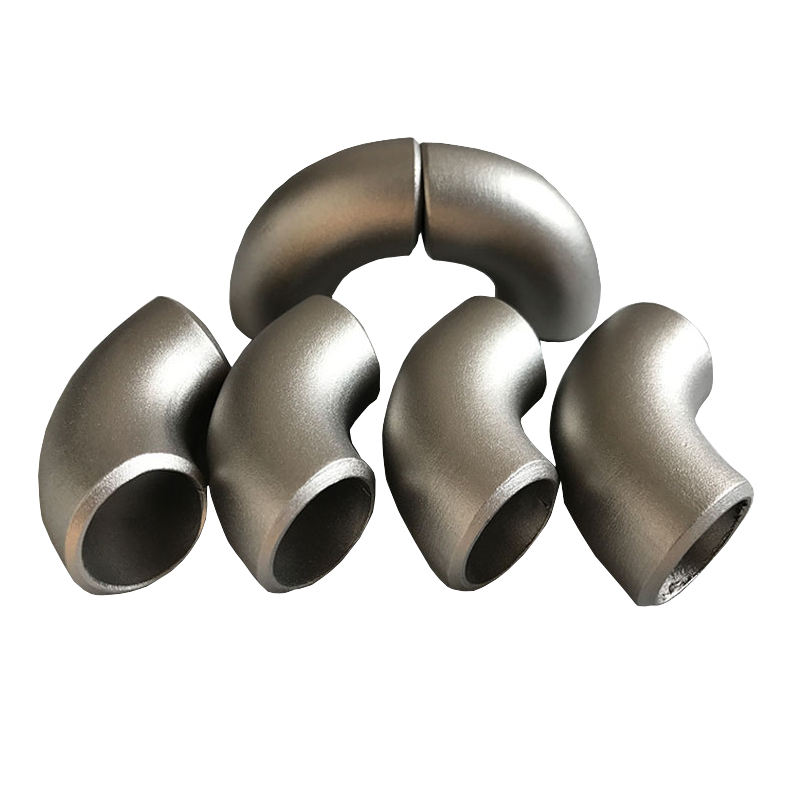

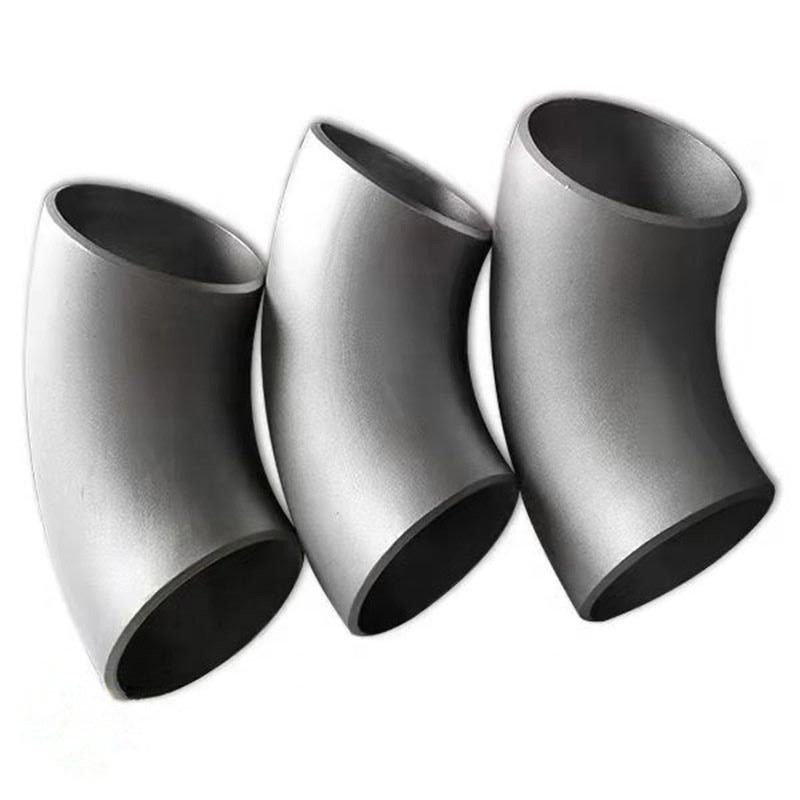

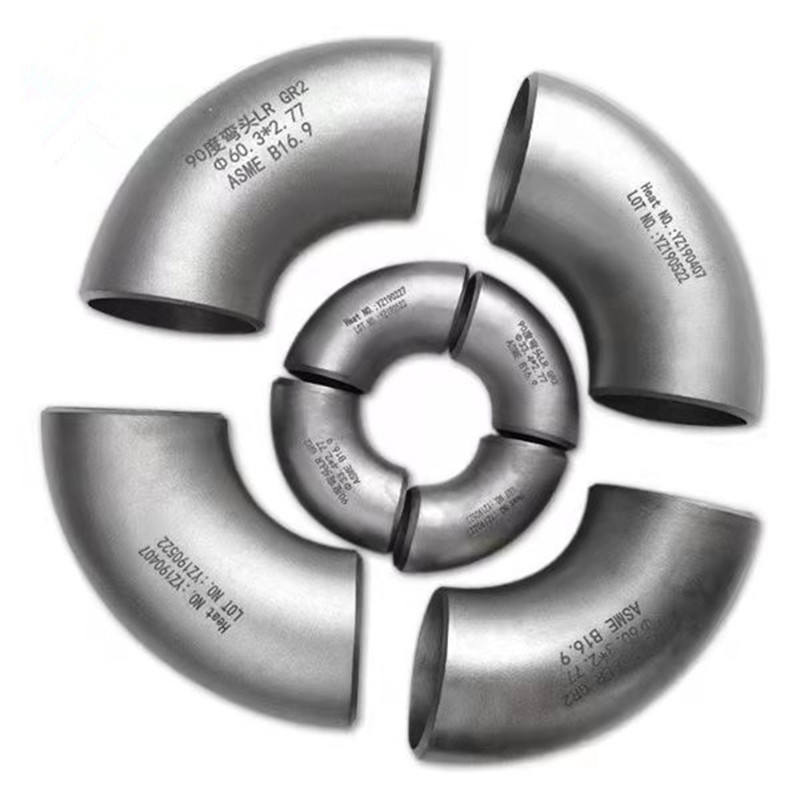

Product Name | Titanium Elbow | |
Grade | Gr1, Gr2 Gr7 Gr9 Gr12,Gr16,,BT1-00, BT1-0 | |
Type | 30,45, 60,90 ,120,180 Degree | |
Standard | ASTM B363, ASME B16.9, ASME SB363, ANSI B16.9 | |
Size | 1/4 inch, 3/4 inch, 1 inch, 2 inch, 3 inch, >3inch | |
Specification | Outer Diameter | DN15-1200 NPS 1/2"-48" |
Wall Thickness | 1-15MM Sch5s-Sch160 | |
Technique | Welded, Forged, Rolled, Seamless | |
Surface | Sand blasting, Polishing, Pickling | |
Test | 100% of the X-ray detection (RT), 100% of Surface penetrant inspection (PT) | |
Application | Structure Pipe, Gas Pipe, Hydraulic Pipe, Chemical Fertilizer Pipe | |
Other Products | Stubs,tee, reducer ,outlet,caps,etc | |
● We could supply various titanium pipe fittings including elbow,tee, reducer, stubs, outlet,caps.
● Titanium pipe fittings are available in CPTi and alloy grades as per ASTM B363, ASME B16.9, ASME SB363, ANSI B16.9.
● We supply titanium pipe fittings at very competitive prices with good quality .
● Some stocks are available for regular size ,and keep the many tube billets and plate in stock. We supply titanium pipe fittings with the short lead time；
● We could make the testing and inspection as per the requirments of specification or customers.Ultrasonic testing and dyepenetrant inspection,making sure there are no defects inside and outside.
● Visual inspection to check surface quality,ensuring without flaw,black dot and any other defects
● We provide the physical and chemical test reports from BaoTi Test Center or Xi’an Hantang Analysis&Test Co.,Ltd ,or make the testing items as per the customer’s requirements.
